Quick answer Start with the operator checks in the manual for your exact Mercury, including the controls and power supply. Note whether the motor does not crank, cranks slowly, cranks without starting, or starts and stops.
Quick answer
Start with the operator checks in the manual for your exact Mercury, including the controls and power supply. Note whether the motor does not crank, cranks slowly, cranks without starting, or starts and stops. That symptom helps the service team choose the next test; it does not identify the failed part by itself. For help, complete a service request at hbwservice.ca.
What to Record Before Calling
- Starting behaviour: no crank, slow crank, cranks without starting, or starts and stops.
- Identification: engine serial number and model information.
- Warnings: exact displayed message or observed horn pattern.
- Recent changes: last successful run, storage history and recent work.
Use the starting checks in the exact engine manual. Do not bypass a safety interlock or open the fuel system to follow a generic picture. If the issue remains unresolved, complete a service request.
It happens at the worst time. Your Mercury sat all winter. The dock is clear, the family is in the truck, you turn the key, and you get a slow grinding click. Or it cranks beautifully but won't catch. Or it fires for two seconds and dies.
This guide walks through the safe diagnostic order we use at HBW. Start with the controls and electrical supply, then fuel and ignition. Some no-starts are simple dockside corrections; others need serial-specific testing and Mercury diagnostic equipment.
What Our Recent No-Start Repairs Actually Turned Out to Be
Earlier versions of this guide counted 537 Lightspeed job records labelled no-start or rough-running since 2013, then stopped short of a cause breakdown. The cause buckets also overlapped, and a symptom label is not the same thing as a confirmed root cause. So we went back and did it properly. We read the technician notes on every customer-paid "won't start" job from April 2023 to October 2026 (194 job lines on 181 repair orders) and recorded what the technician found and fixed, not what the customer first suspected. That covers every brand we work on, outboards and sterndrives, not just Mercury.
| What fixed it |
Share of the 184 job lines with a recorded cause |
| Electrical: battery, cables and grounds, wiring, starter or solenoid |
36% |
| Fuel: water or debris in the fuel, carburetor, filters, fuel pump |
31% |
| Ignition: plugs, coils, stator, switch box |
16% |
| Engine mechanical: compression, water in the cylinders |
10% |
| No fault found or operator slip: kill switch off, tank empty, or it started fine on arrival |
5% |
| Other |
1% |
Ten job lines didn't record a clear cause, so they're left out (and the rounded figures don't quite add to 100). Fuel is the biggest single cause. Electrical edges it out once you put battery, connections and starter problems together, and that's the fair way to count them, because they usually show up the same way, as a click or a slow crank.
The age of the motor changes the picture. On older carbureted and two-stroke motors (89 jobs with a recorded cause), fuel led at 42% and electrical was 24%. On newer EFI and direct-injection motors (57 jobs), electrical was nearly half at 49%, fuel was 28%, and ignition faults were rare at 5%. Another 38 jobs didn't say how old the motor was. Failed starter solenoids (16 of the 31 starter-circuit jobs) and corroded or loose connections showed up again and again. Rodent-chewed wiring was rarer than you'd think, about three jobs.
Limits worth knowing: some jobs had more than one problem, and where a technician fixed several things we counted the main fault. About 20 job lines were judgment calls of that kind. Typical labour, before parts and HST, ran about $140 for electrical fixes, about $210 for fuel work and about $205 for ignition work. That's a median, not a quote.
That's why the ladder below starts with power and connections, even though fuel gets most of the blame.
::cta
variant: inline
heading: Keep the Alarm & No-Start Action Card aboard
body: There is no universal Mercury beep dictionary. Use this one-page card to capture the exact warning and display message, work through safe first checks and record what the shop needs.
primaryLabel: Download action card (PDF)
primaryHref: /downloads/mercury-alarm-no-start-action-card-hbw.pdf
::

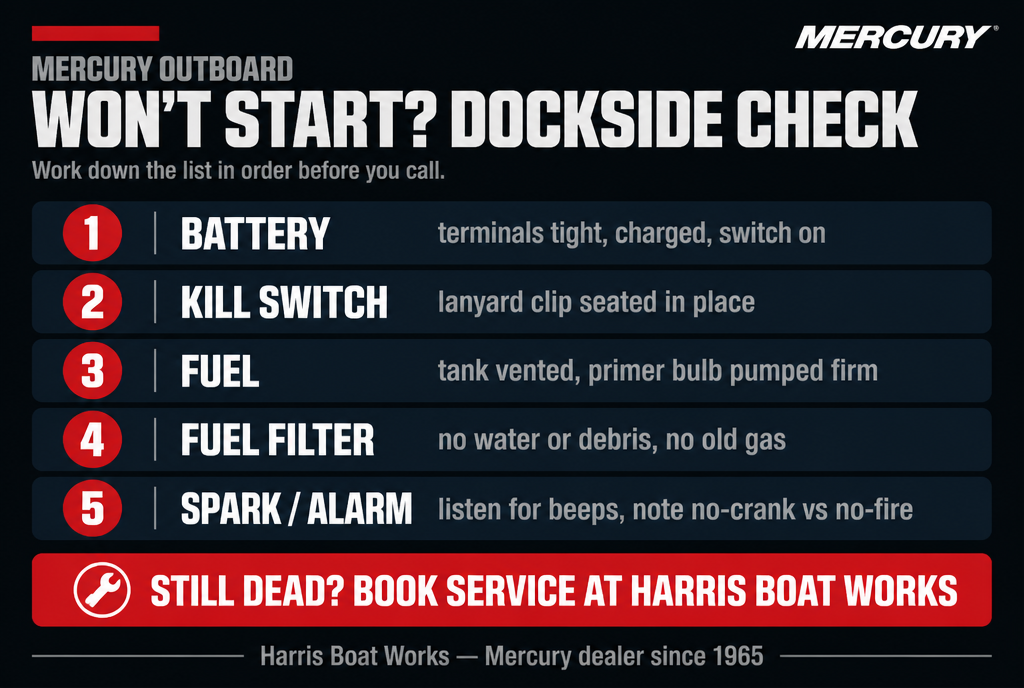

The three "stupid easy" things to check first
Before you call anybody, check these three. We're not joking. A meaningful percentage of "won't start" walk-ins at HBW are one of these.
1. Kill switch slightly off. The clip or magnet looks like it's on, but it's not fully engaged. Pop it off, snap it back on firmly until you feel it seat. Try again.
2. Gear not truly in neutral. The handle looks centered, but the neutral safety switch is still reading "in gear." Especially on controls that are a bit worn or got bumped while docking. Click the shifter into neutral with a positive feel. Try again.
3. Battery switch off or on the wrong bank. Third place is the battery switch left on "off" or pointing at a dead bank. Set the switch to the normal starting position specified for your boat and switch. Use a BOTH or COMBINE position only if the installed system's instructions call for it; it connects battery banks rather than selecting a healthy bank.
After these three, move into the real diagnostic ladder below.
The HBW diagnostic ladder (what we check, in order)
Step 1: Battery voltage at rest
Get a multimeter on the battery terminals. A fully charged 12 V lead-acid battery is typically around 12.6 V at rest, but the useful test is what happens under cranking load.
If voltage falls sharply, the starter labours, or a cable gets hot, stop and correct the battery or connection problem before chasing fuel and ignition. Mercury's cranking-battery requirement varies by engine family, so use the serial-specific owner's manual rather than one voltage cutoff for every EFI outboard.
A weak battery is a common cause of EFI motors that crank slowly but won't fire.
Step 2: Fuel quality and quantity
If fuel sat through storage, treat fuel quality as a question rather than assuming it is fine. Ethanol-blended gasoline can absorb water, and enough water can cause phase separation. The timing is not a fixed number of days; it depends on the fuel, water exposure, tank, temperature, and storage conditions.
What to check:
- Pump a sample from the bottom of the tank into a clear glass jar
- If you see two distinct layers (gasoline floating on cloudy water-ethanol), the fuel is gone. Drain and refill
- Use marine stabilizer at every storage event
HBW sells Ethanol-Free 89 fuel at the dock. For boats that sit in storage for months, ethanol-free is the cleanest path to avoiding phase separation entirely. Confirm current dock hours and availability before you rely on it.
Step 3: Fuel filter and primer bulb
- Primer bulb, if fitted: Use the priming procedure in your engine manual. If the system will not prime, check the fuel supply, line connections and visible leaks rather than replacing a bulb based on feel alone.
- Fuel filters: Check the filter type fitted to your engine and boat. A sealed inline filter is replaced as a unit; it is not a drainable bowl. If a water-separating filter is fitted, inspect or drain it only as directed by the engine or filter manufacturer's instructions.
Step 4: Spark plugs
If you've ruled out battery and fuel, the next check is ignition. Pull a plug, look at it.
- Wet with fuel: flooded condition. Dry the plug, check spark
- Dry and white: lean condition, work backward to fuel
- Black and oily: rich condition or oil consumption
- Black and dry (carbon fouled): plug needs replacement
Mercury specifies the spark-plug type by engine and serial number. Verify the correct part and gap in the owner's or service manual rather than matching only by horsepower.
Step 5: EFI fault code scan (this is us)
On EFI motors 40-115 HP, many "cranks but won't fire" tickets come back with clean fault memory with no code stored. The actual cause is typically:
- Low system voltage during crank
- Poor grounds or corroded battery cables
- Low-pressure fuel pump weak or failed
- VST (Vapour Separator Tank) contaminated with water or debris
- Crankshaft position sensor intermittent
This is where we plug in Mercury CDS (Computer Diagnostic System) and run live data. HBW is a Mercury CDS-equipped Premier dealer.
Step 6: Compression check (also us)
If you've ruled out the easy stuff, a compression or leak-down test can help identify a mechanical problem. There isn't one safe PSI cutoff for every Mercury outboard. Results depend on engine family, test method, gauge, cranking speed, temperature, and altitude.
We compare cylinders with each other and then check the serial-specific Mercury service specification. A low or uneven result is a reason to investigate, not a universal diagnosis by itself.
If it won't start after sitting all winter
A motor that sat for five or six months through an Ontario winter and won't start in spring isn't being difficult. It's showing you exactly what sitting did to it. The good news: most of the causes are predictable, diagnosable by an owner, and fixable without a service call, if you work through them in order.
Boats are remarkably good at turning six months of storage into an educational Saturday. This is the checklist that shortens that Saturday considerably.
The battery: cold storage takes a toll
This is where most Ontario spring no-starts start and end.
An Ontario winter is genuinely hard on lead-acid marine batteries. The combination of cold temperatures, self-discharge over 5-6 months, and lack of maintenance charging means a battery that was at 100% in October may be at 50% or less in May, and a deeply discharged battery sulfates, which permanently reduces its capacity. It may show voltage on a basic multimeter but collapse under cranking load.
What to check:
- Battery charge: Resting voltage alone does not establish battery health or prove it can crank your engine. Charge and test it according to the battery manufacturer's instructions.
- Cranking test: Load-test the battery using its manufacturer's procedure and check the cranking-battery specifications in your exact Mercury manual. If voltage collapses, the starter labours or a cable gets hot, stop and investigate the battery and connections; do not use one voltage cutoff for every engine or battery chemistry.
- Terminal condition: White or green deposits on terminals = corrosion = resistance. Clean with a wire brush and baking soda solution, dry, reconnect, then retest.
- Cable connections: All tight? A cable that loosened over the winter creates intermittent no-start symptoms.
If you put the battery on a tender over winter: You're in much better shape. A properly maintained battery typically comes out of storage near full charge.
If you didn't: Charge it fully first. If it won't take a charge or drops quickly under load, replace it. A new battery is a much less expensive fix than the frustration of diagnosing everything else while the battery is marginal.
Fuel: old gas is genuinely a problem
E10 fuel (standard Ontario pump gas with 10% ethanol) has no fixed 30- or 60-day shelf life. Mercury warns that oxidation can begin in as little as two weeks; actual timing depends on fuel age, ethanol content, water exposure, tank condition, temperature and storage. Fuel that's been sitting in the tank from last October without stabilizer, or with incorrectly applied stabilizer, may be the issue.
Stale ethanol-blend fuel can:
- Develop sour-smelling, lacquer-like oxidation byproducts that gum up injectors and carburettors
- Phase-separate as the ethanol absorbs water, leaving a water-alcohol layer at the tank bottom
- Cause hard start, rough idle, and poor performance even if the motor eventually runs
What to check:
- Smell the fuel. Fresh gas smells like fuel. Stale gas smells sour or like nail polish remover. If it smells off, it is.
- Check the fuel tank for water. Water is heavier than fuel and sinks. If there's a drain or sump on the tank, check it.
- Check the fuel filter/water separator, if fitted. Identify the filter and follow its specified inspection or replacement procedure. Do not try to drain a sealed inline filter; a drainable water-separating assembly needs its own manufacturer's procedure.
- Primer bulb, if fitted. Follow your exact engine's priming procedure rather than a fixed squeeze count. If the system will not prime, check fuel supply, line connections and visible leaks before condemning the bulb.
- Check fuel lines. Old rubber fuel lines harden and crack. A cracked line lets air in, causing lean running or no-start. Inspect visually and by feel.
- Tank vent open? An unvented tank creates vacuum as fuel draws out. The motor starves.
If the fuel is suspect: The cleanest fix is to drain the tank and refill with fresh fuel. On smaller tanks, this is easy. On larger tanks, drain as much of the old fuel as you can and refill with fresh fuel. A stabilizer protects fresh fuel but does not bring stale fuel back, so it is not a substitute for draining.
We sell ethanol-free fuel on-site at HBW. For a motor going into storage, finishing the season with ethanol-free is one of the best things you can do for next year's start.
Spark plugs and ignition
If battery and fuel are confirmed good, spark is next.
After sitting, spark plugs can be fouled (oil or carbon deposits from the last season), gapped incorrectly, or just at end of service life. A plug that looks physically fine can still have an internal failure.
- Remove the plugs and inspect for fouling (oily black = oil/rich fouling; white/chalky = lean/overheating; normal = light tan to grey)
- Confirm the electrode gap matches your motor's spec (in the owner's manual)
- Replace any that look doubtful
Flooding: If you cranked the motor multiple times trying to start it before reading this, the cylinders may be flooded with fuel. Modern EFI motors rarely flood. On a flooded carbureted motor, remove the plugs, ground the spark plug leads (or disconnect the coils) and keep the lanyard off while cranking briefly to clear the cylinders. Keep sparks and flames clear of the fuel spray. Let it sit 15-20 minutes with the plugs out, then reinstall fresh plugs, reconnect the leads and lanyard, and try again.
Check for display messages or fault codes
If your boat has a SmartCraft display, VesselView, or any Mercury gauge display, check it before and after attempting to start. Mercury's ECM logs fault codes and displays active alarms.
Take a photo of any message displayed. Include this when booking service, it saves diagnostic time.
The winterization connection
If the motor wasn't properly winterized last fall, some of the causes above are more likely and some additional ones are possible:
- Unstabilized fuel in the system gummed up injectors or carburettor passages
- The wrong internal-protection procedure can leave corrosion or fuel-system storage problems
- Cooling system water not fully drained, if it froze, there may be physical damage
- Battery left connected through storage with no maintenance charging, compromised battery from winter discharge
If you're not sure the motor was properly winterized, tell the dealer. It's relevant to the diagnostic.
What we see at HBW
Control and power checks: kill switch, neutral-safety position, battery switch, battery condition, cables, and grounds.
Fuel and ignition checks: fuel quality, primer bulb, filters, spark plugs, and model-specific ignition tests.
Dealer diagnosis: Mercury CDS live data, VST and fuel-pressure checks, sensors, coils, compression, or leak-down testing when the earlier steps do not identify the fault.
The ladder is ordered to prevent wasted work. A disabled kill switch, neutral-safety issue, weak battery, poor connection, or contaminated fuel can imitate a more expensive failure. Confirm the basics before replacing parts or assuming the engine computer has failed.
Once the boat is on the bench, many no-start jobs are quick to isolate. Parts availability and the actual cause decide the repair timeline.
Common mistakes
- Using starting fluid without a model-specific procedure. Do not spray ether into a modern Mercury because an internet forum suggested it. Follow the owner's or service manual.
- Cranking continuously. Long repeated attempts can overheat the starter and flatten the battery. Use the cranking and rest limits in the owner's manual.
- Throwing parts at it. New plugs into a tank of phase-separated gas fouls the new plugs. Diagnose in order: power, fuel, spark. That's the whole ladder above.
- "Freshening up" bad gas. Topping a half tank of separated E10 with fresh fuel doesn't fix it. The water-ethanol layer is still sitting on the pickup. Drain it.
- Jump-starting from a running truck. Voltage spikes and modern engine computers are a bad mix. Charge the battery properly or swap in a good one.
Customer language we hear
- "It cranks fine." About half the time it doesn't. Slow, laboured cranking sounds normal to an owner who's used to it. Voltage test settles it in ten seconds.
- "The gas is fresh." Fresh from the jerry can you filled last October counts as stale. If it sat over winter with ethanol in it, it's a suspect.
- "It ran perfect last fall." We believe you. Eight months of sitting is exactly how batteries, fuel, and plugs fail. Nothing has to "break" for a no-start.
- "I already checked the spark." A visible spark in daylight isn't a load test. Weak spark looks fine until the plug is under compression.
Ready for HBW to look at it?
Book a Mercury diagnostic at hbwservice.ca.
