Last reviewed: 2026-05-07 > Quick answer: Battery-related no-starts are HBW's #1 spring service call. Most Mercury 4-strokes 75 HP and up need at least 800 MCA at startup. Use a starting battery for cranking, a deep cycle for accessories, and dual-purpose only as a...
Last reviewed: 2026-05-07
Quick answer: Battery-related no-starts are HBW's #1 spring service call. Most Mercury 4-strokes 75 HP and up need at least 800 MCA at startup. Use a starting battery for cranking, a deep cycle for accessories, and dual-purpose only as a compromise. Disconnect or use a battery switch for winter storage, top up monthly with a maintenance charger, and replace at 5-7 years even if it still cranks.
It's the first warm weekend of May. The dock is clear. Your family is in the truck. You climb into the boat, turn the key, and get a slow, grinding click.
Dead battery. Again.
Battery-related no-starts are one of the most common spring service calls our techs handle here at Harris Boat Works. The story is always the same: started fine in October, sat all winter, won't turn over in April. The battery is 6 years old, the terminals are white with corrosion, and the owner had no idea the bilge pump was pulling 15 milliamps all winter.
This guide is the preventive medicine version of that service call. Battery types, switch setups, parasitic drain, winter storage, spring wake-up, everything you need so May long weekend starts the way it's supposed to.
Why Batteries Are Our #1 Spring Service Call
Ontario's boating season runs roughly May to October, which means your battery sits idle for 5 to 6 months. A healthy, fully charged battery can hold its charge in storage. A tired one cannot. And most boaters don't think about their battery at all between haul-out and launch.
Even disconnected, a lead-acid battery slowly self-discharges. Connected to a modern boat with a GPS, stereo, alarm, or automatic bilge pump drawing current continuously, that battery can be dead in 4 to 8 weeks. By the time you're ready to launch, you've got nothing.
The boats that never have this problem aren't running special equipment. They're following a protocol. This guide is that protocol.
The 3 Battery Types, and Which One Your Mercury Needs
Starting (Cranking) Batteries
Starting batteries deliver a massive burst of current for 1 to 3 seconds to crank an outboard, many thin plates, maximum surface area, designed for short bursts. They degrade quickly if repeatedly drawn down to a low state of charge.
Key spec: Marine Cranking Amps (MCA), measured at 32°F. For most Mercury 4-stroke outboards 75 HP and up, a general industry guideline is at least 800 MCA as a starting point. Always check your engine's owner's manual for the exact requirement for your model.
If you have an outboard and nothing else drawing power, a quality starting battery is all you need.
Deep Cycle Batteries
Built for sustained, low-current output over a long period. Thicker plates, designed to be drawn down and recharged repeatedly. If you're running a trolling motor, live well, or fish finder all day, you need a dedicated deep cycle battery for those loads, not a starting battery.
Dual-Purpose Batteries
A reasonable compromise for smaller boats with a single battery and light accessory loads. They don't outperform a dedicated starting or deep cycle battery in their respective jobs, but they beat using the wrong tool entirely.
Battery Group Sizes, 24, 27, and 31
Group size describes physical dimensions, not power output. It tells you what fits in your battery box.
- Group 24: Smaller, lighter. Common on smaller outboard boats and runabouts.
- Group 27: Most common on medium fishing boats and pontoons. Good balance of capacity and fit.
- Group 31: Large and high-capacity. Used on bigger boats or dual-battery setups where space isn't a constraint.
Measure your battery compartment before ordering. A group 31 won't fit in a space designed for a group 24.
AGM vs. Flooded Lead-Acid vs. Lithium
Flooded Lead-Acid (FLA)
Less expensive upfront, widely available, and functional if maintained. Downsides: requires periodic electrolyte level checks (distilled water only), must stay upright, and is sensitive to deep discharge. Fine if budget is the driver and you're willing to do basic maintenance.
AGM (Absorbent Glass Mat)
The sweet spot for most Ontario boat owners. Sealed and maintenance-free, no water to check, no fumes, no acid spill risk. Better vibration tolerance, slower self-discharge in storage, more tolerant of partial discharge. Costs more upfront, lasts longer in real-world use. If you're buying a replacement today, AGM is almost always the right call.
Lithium (LiFePO4)
Genuinely excellent, lighter, longer lifespan, very low self-discharge, can be discharged deeper without damage. The catch: 3 to 5 times the cost of an equivalent AGM, and requires a lithium-compatible charger. A standard marine charger can damage a lithium battery. Verify full system compatibility before committing.
For most recreational boats in Ontario, AGM is the right answer. Lithium makes sense for boaters who are out constantly, running heavy accessory loads, or optimizing for weight.
The Battery Switch. What Every Boater Needs to Know
Why You Need One
A battery switch isolates your battery from the boat's electrical system. In the OFF position, nothing draws power, parasitic drain stops. It's the most effective storage strategy available, and one of the simplest.

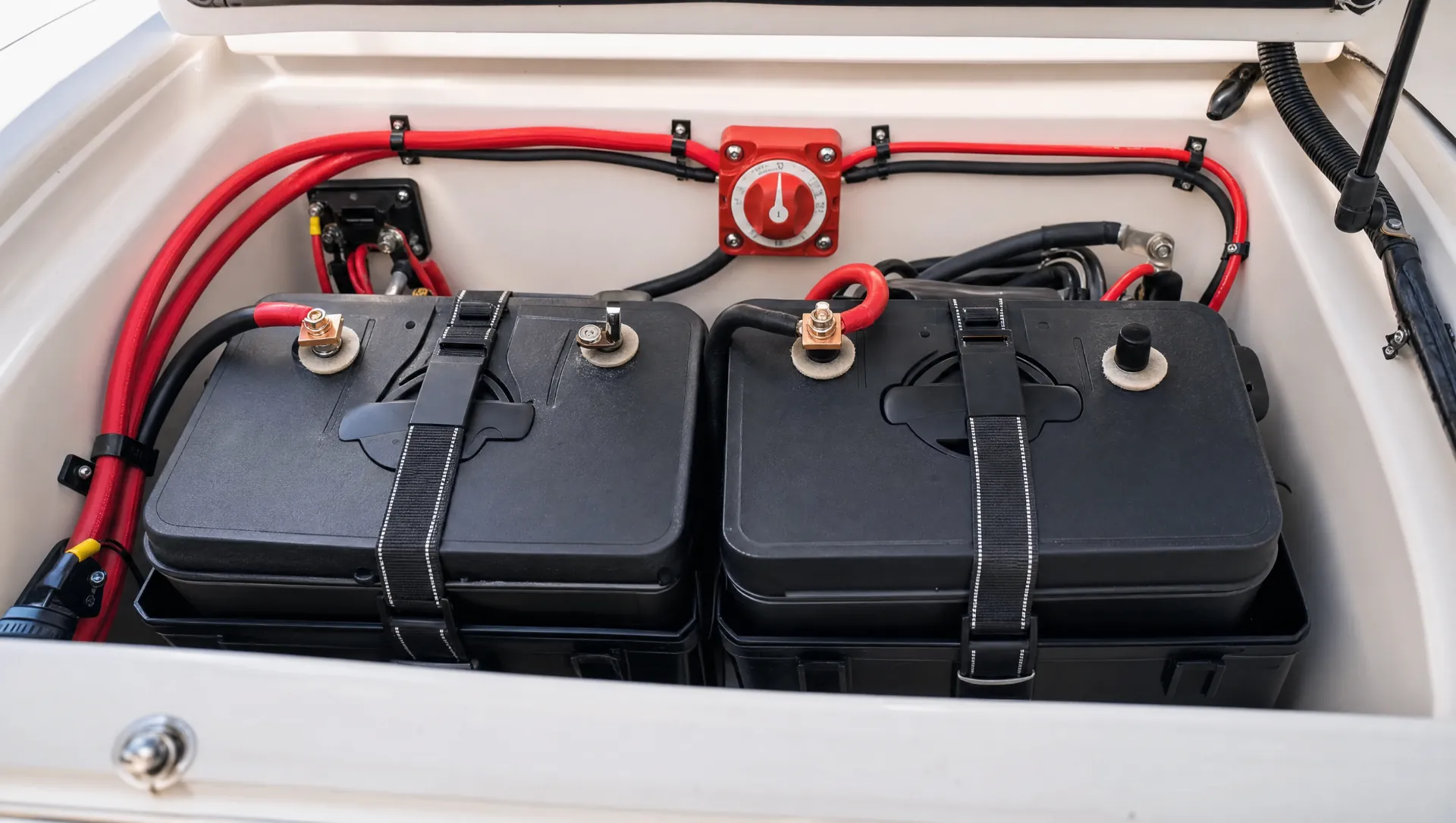

Single vs. Dual Battery Setup
A single battery setup with a simple On/Off isolator switch is fine for small boats with minimal accessories. Turn it off, parasitic drain stops.
A dual battery setup runs a dedicated starting battery and a deep cycle battery for accessories, managed through a selector switch.
Off / 1 / 2 / Both. What Each Position Does
- OFF: All circuits isolated. Use this for storage and any time the boat is unattended.
- 1: Powers the boat from Battery 1 only. Battery 2 is isolated.
- 2: Powers the boat from Battery 2 only. Battery 1 is isolated.
- BOTH: Both batteries in parallel. Both charge when the engine runs.
The "Both" Position Trap
This is how boats come in dead every spring: the switch was left on BOTH all winter. With the switch on Both, any parasitic draw pulls from both banks simultaneously. You've doubled your drain exposure. Never leave the switch on Both for storage. Turn it to OFF.
One more note: never switch directly from 1 to 2 while the engine is running. Switch to Both first, then to the other bank. Going directly from 1 to 2 with the alternator running can spike voltage and damage electronics.
Adding an ACR or VSR
An Automatic Charging Relay (ACR) or Voltage Sensitive Relay (VSR) monitors both battery banks and automatically connects them for charging when the engine runs, then isolates them when it shuts off. Both batteries charge on every engine run. Neither can drain the other in storage. No operator input required. If you're doing a dual battery upgrade, an ACR is worth the investment.
Wiring Basics. Where DIY Goes Wrong
This is where our techs find the most deferred maintenance:
- Cable sizing: Undersized cables create voltage drop, your motor sees less voltage than the battery is producing, causing hard starting even with a healthy battery. Match cable gauge to run length and load. When in doubt, go heavier.
- Terminals: Loose or corroded connections add resistance. Inspect and tighten every spring.
- Fuse the positive run: Every positive cable should be fused close to the battery. An unfused positive cable is a fire risk.
- Ground bus bar: Individual ground wires back to the battery negative terminal creates a mess. A proper ground bus bar keeps things clean and serviceable.
If you're not confident in your boat's wiring, have a tech look at it. Bad marine wiring doesn't just cause reliability problems, it causes fires.
Parasitic Drain. Why Your Battery Dies in Storage
Parasitic drain is any current draw that continues when the boat is "off." On a modern boat, that includes:
- Automatic bilge pump float switch
- GPS/chartplotter in standby
- Stereo memory and clock circuits
- VHF radio standby circuit
- Alarm systems
A modern boat can draw 10 to 30 milliamps continuously. At 20 mA, a 100 Ah battery is fully dead in around 200 days, right inside Ontario's winter storage window.
Solutions, in order of effectiveness:
- Turn the master switch OFF. Breaks the circuit, stops all parasitic drain. Note: if your boat has an auto bilge pump, verify whether your switch keeps the bilge circuit live, know what you're turning off.
- Disconnect the negative terminal. Fallback if the switch doesn't fully isolate.
- Remove the battery and store it indoors. Best option for boats without power access in storage.
The Full Winter Storage Protocol
Before storage:
- Bring the battery to a full charge before putting it away, never store it at 50%.
- Turn the master switch to OFF.
- If you won't have access to check on it, remove the battery and bring it inside.
Storing in place with power access:
- Connect a battery maintainer (smart charger or float charger), not a regular trickle charger. A trickle charger runs a constant low current that will overcharge a battery over 5 months. A smart maintainer monitors voltage and charges only when needed.
- Check voltage monthly. Below 12.4V, recharge immediately. Below 12.2V after a full recharge means the battery is failing.
Storing removed:
- Store on a wood shelf or mat. The advice against concrete is largely a myth for modern sealed batteries, concrete doesn't actually discharge them, but keeping terminals off a damp floor is still sensible.
- Keep the location cool but above freezing. A discharged battery can freeze and crack.
- Top up the charge if voltage drops below 12.4V.
Lithium exception: Lithium batteries are typically stored at a partial state of charge, not full. Check the manufacturer's spec, overcharging in storage degrades the cells.
For the full winterization picture, see our DIY Mercury Outboard Winterization Guide and our post on winter boat storage options in Ontario.
Spring Wake-Up Routine
- Check resting voltage. After an hour off charge: 12.6V+ = healthy. 12.4–12.5V = okay. Below 12.4V = recharge and retest. Below 12.2V after a full charge = replace it.
- Load test. Voltage alone isn't the whole picture, a battery can read 12.6V and still fail under cranking load. Our shop load tests, and most auto parts stores will test for free.
- Inspect terminals. White or green crust is corrosion. Clean with a paste of baking soda and water, rinse, dry, and apply dielectric grease before reconnecting. This prevents recurrence.
- Check water levels (flooded batteries only). Top up with distilled water, never tap water.
- Confirm switch position. Make sure it's in the correct operating position, not OFF.
- Reconnect and crank. A healthy battery on a healthy engine starts in 2 to 3 seconds.
For the full spring startup sequence, see our Spring Outboard Commissioning Checklist. If the motor still won't start after confirming the battery is good, see our Mercury Outboard Won't Start troubleshooting guide.
When to Replace
Most marine batteries last 4 to 7 years. Replace it when:
- Resting voltage is below 12.2V after a full charge
- It fails a load test
- You see swelling, cracking, or electrolyte leakage
- It's more than 7 years old and spring no-starts are getting more frequent
Pushing a tired battery through one more season is exactly how you end up stranded, calling for a tow. A new AGM group 27 costs a fraction of a service call.
Quick Reference Card
| Battery Type |
Best Use |
Maintenance |
Replace When |
| Starting (cranking) |
Outboard cranking only |
Inspect terminals spring/fall |
Fails load test, or resting V < 12.2V |
| Deep cycle |
Trolling motor, accessories |
Inspect spring/fall |
Can't hold charge through a day of use |
| Dual purpose |
Single battery, mixed light use |
Inspect spring/fall |
Fails load test, or resting V < 12.2V |
| Flooded lead-acid |
Budget, maintained |
Monthly water level check |
3–5 years, or failure |
| AGM |
Most recreational boats |
Spring inspection only |
5–7 years, or failure |
| Lithium |
High-use, weight-sensitive |
Per manufacturer spec |
Per manufacturer spec |
Voltage reference: 12.7V = full · 12.4V = 75% · 12.2V = 50% · Below 11.9V = discharged, possibly damaged
What HBW Techs See Most Often
Five problems account for the majority of battery-related spring service calls:
- Corroded terminals. Often severe enough that a perfectly capable battery was acting dead. A 10-minute cleaning job would have prevented the service call.
- Battery dead from sitting. Master switch left on, 20 mA of parasitic drain, five months of Ontario winter. The battery hit 10V in February and never came back.
- Wrong battery for the application. Starting battery running a trolling motor and fish finder all day. Works for a season or two, then fails early. Not a defective battery, a misapplied one.
- Switch left on Both all winter. Both banks drained, one or both batteries failed. Same cause every time.
- Undersized cables causing voltage drop. Boat cranks sluggishly, owner buys a new battery, problem persists. The battery was fine, an undersized cable was starving the starter. Correct cable sizing solves it.
If your boat fits any of these descriptions, a pre-season service appointment is the right move. Getting the electrical system right once means not dealing with it again for years.
For more on how on-board monitoring tools can help you track your boat's electrical health in real time, see our Mercury VesselView and SmartCraft Plain-English Guide.
Battery, Switch, or Charging System Question? We Diagnose and Fix All of It.
Battery problems are fixable. They're also preventable, if you know what to check and when.
Book a service appointment at hbw.wiki/service and our techs will load test your battery, inspect your terminals, check your alternator output, and give you a straight answer on what it actually needs, before the season starts.
Looking for a replacement battery, smart charger, terminal hardware, or switch components? Check marinecatalogue.ca, real prices, no phone tag.
