Quick answer
A Canadian boat capacity plate (called a Compliance Notice by Transport Canada) tells you the maximum number of people, maximum recommended engine horsepower, and maximum total load the boat is rated to carry safely. The numbers are stamped on a riveted plate inside the hull, usually near the helm or transom. If your boat was built before 2010 and is under 6 metres, it may not have one. If it does, the rules apply: exceeding the rated horsepower can void your insurance and your warranty, and overloading the boat is a real safety problem, not a guideline. This guide walks through every field, explains what is and is not legally enforceable, and covers the three reading mistakes we see most often at our Rice Lake marina.
Where to find the plate

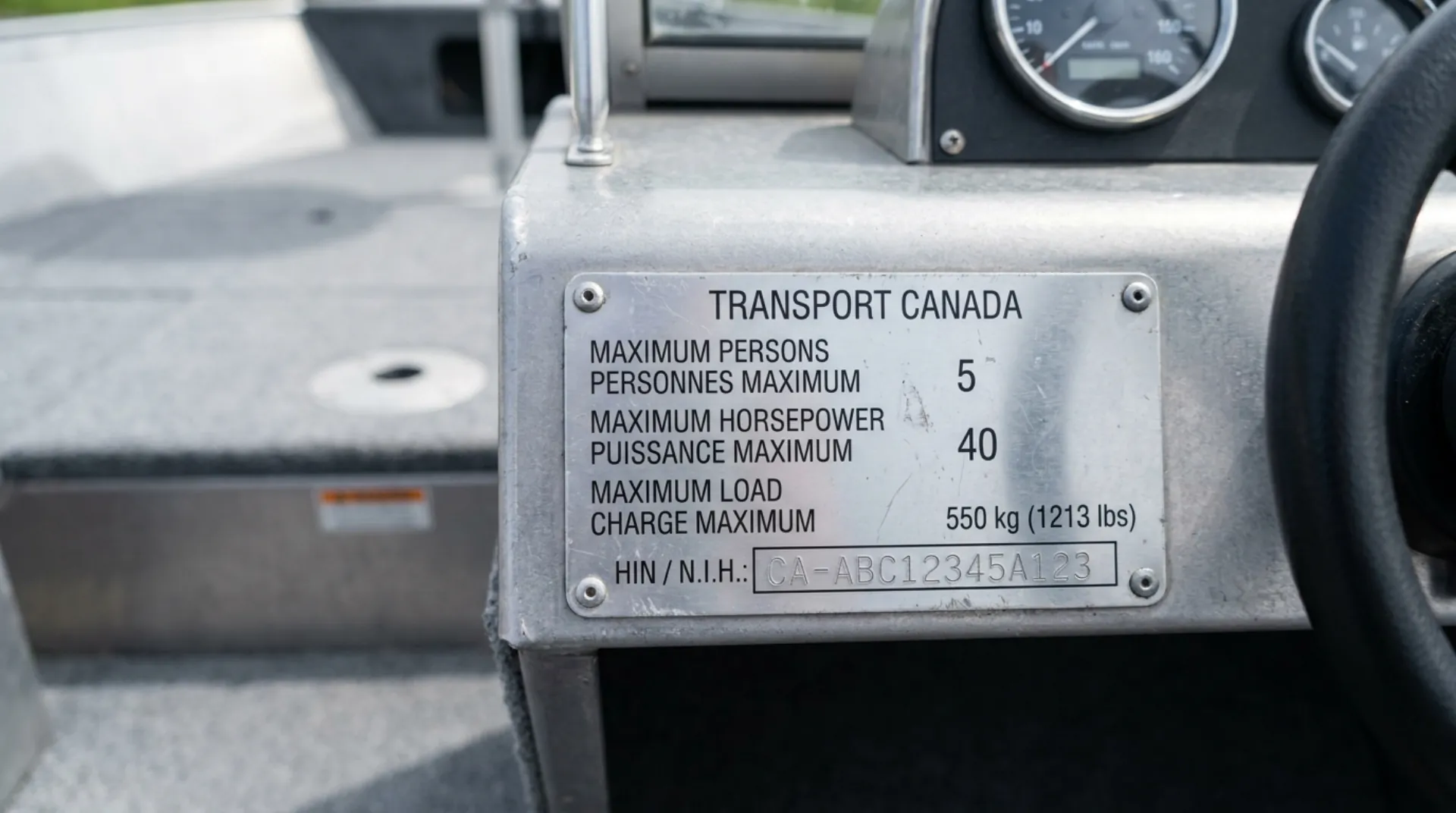

On boats manufactured in Canada or imported and Transport Canada-compliant, the Compliance Notice is permanently affixed in one of three places:
- Inside the transom at the rear of the boat, often on the splashwell.
- At the helm on the side of the console (typical on bowriders and runabouts).
- On the inside of the gunwale near the cockpit (typical on smaller fishing boats).

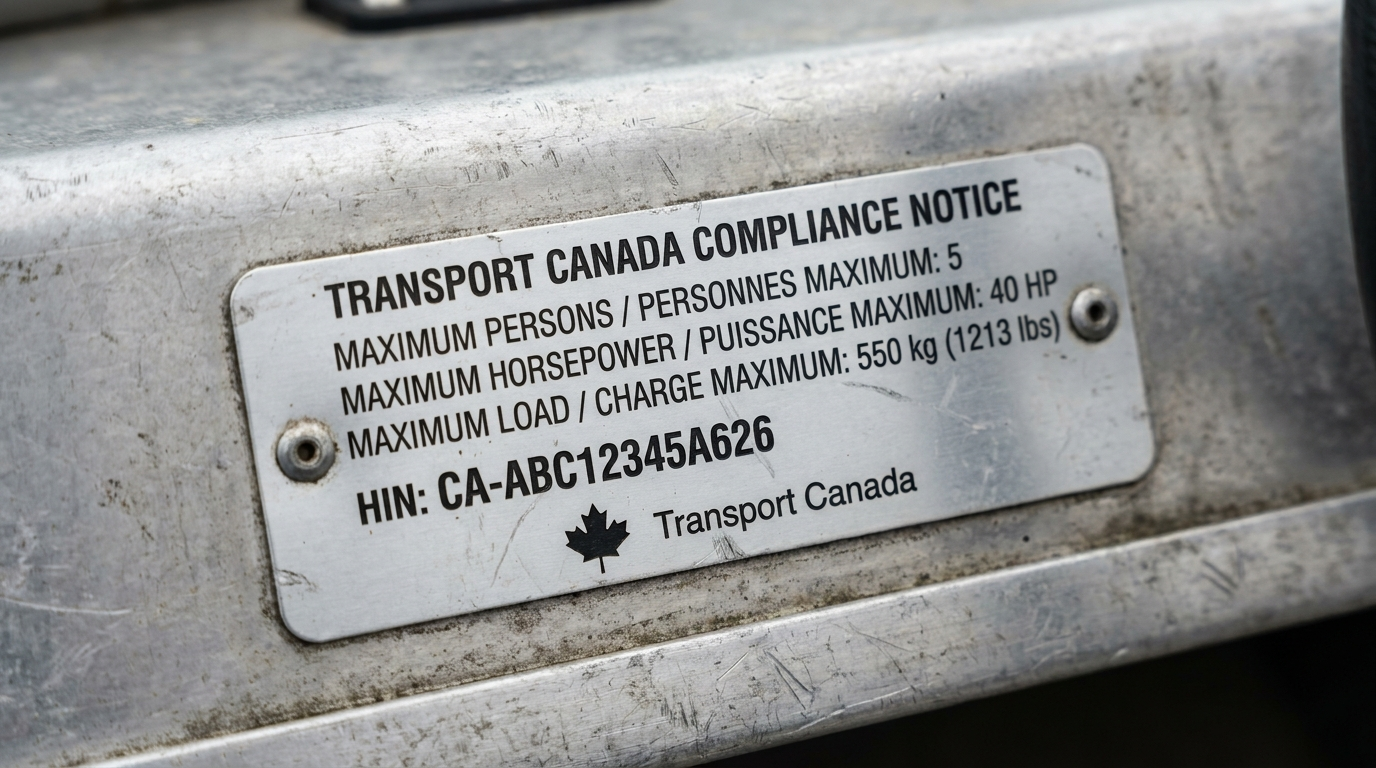

If you cannot find it, look for a 4x6 inch silver or yellow plate with rivets, often beside the HIN (Hull Identification Number) decal. The HIN is a separate 12-character serial number that identifies the hull itself, not its capacity.
What each field means
A standard Canadian capacity plate has four numbers and one rating:
1. Maximum number of persons
The legal-language version is "maximum number of adult persons", typically rated based on 75 kg per person. If the plate says 5, that is 5 adults at average weight, with average gear. Three adults and a 200-lb tackle box is functionally the same load as four adults with light bags.
This number is binding. If you exceed it and something goes wrong (capsize, swamping, injury), your insurance carrier and Transport Canada will both have something to say about it.
2. Maximum recommended engine horsepower
This is the highest motor power the hull was designed and tested to handle safely. It is set by the manufacturer based on hull dynamics, weight distribution, and transom strength.
Important: this is not a "minimum" or a "you should buy this much." It is a ceiling. Over-powering a hull can cause it to porpoise, plough, or in extreme cases fail at the transom. Under-powering wastes the hull's potential but is rarely dangerous.
This number is also binding for warranty and insurance purposes. Mounting a motor that exceeds the rated max can void both, even if the boat seems to handle fine. We have seen Ontario insurance claims denied on this exact basis.
3. Maximum gross load (or maximum total weight)
This is the total weight the boat can safely carry: people, fuel, gear, motor, batteries, coolers, everything that is not the empty hull. Usually expressed in both kilograms and pounds. The number is much larger than just "5 people times 75 kg" because it accounts for fuel weight, motor weight, and typical gear.
If your boat says 600 kg total load, you do the math: motor weight (often 80-150 kg for a typical outboard) plus fuel (around 0.75 kg per litre, so a full 100-litre tank is 75 kg) plus people plus gear. Get above the number and the freeboard drops, the boat handles worse, and the swamping risk goes up significantly in waves.
4. The "Conformity" or "C.E.S." rating
A small marking confirms the boat was built to Canadian Compliance Notice standards. You do not need to memorize this. The presence of the official plate is what matters legally.
The three reading mistakes we see most often
Mistake 1: Confusing "maximum recommended HP" with "what the boat needs"
A 14-foot aluminum boat with a 40 HP max rating does not need a 40 to be enjoyable. A clean Mercury 25 or 30 will move that hull happily, sip fuel, and last longer than a maxed-out repower. The HP number is a ceiling, not a target. Most well-matched setups run 60-80% of the rated max.
Mistake 2: Assuming person count applies to kids the same as adults
The plate is rated for "adult persons." Kids count differently. Two kids in adult-size PFDs are roughly one adult by weight, but the legal interpretation matters in an incident. Most operators round up: kids count as adults for loading purposes, full stop. This keeps you on the safe side of the line and clearly compliant.
Mistake 3: Ignoring the plate on a used boat purchase
You can build a live CAD quote for your repower online at Mercury Repower Centre.
The capacity plate is non-negotiable information about what you are buying. If a seller has covered it, removed it, or "can't remember where it is," that is a flag. A missing plate on a post-1980 Canadian-built boat means either the boat was modified beyond its original rating, or the plate fell off and was never replaced, both worth investigating before you write a cheque.
This is one of the items on our printable Used Boat Walkaround Guide for a reason.
What if my boat doesn't have a capacity plate?
Transport Canada requires Compliance Notices on most pleasure craft built after 1981 that are under 6 metres in length and have a transom. Boats built before that, custom-built boats, and certain larger vessels may not have one.
If you own a plate-less boat, the responsibility for safe loading falls entirely on you. Transport Canada publishes guidance on calculating safe capacity based on length, beam, and freeboard. The short version:
- Persons = (length in feet x beam in feet) / 15
- A 16-foot boat with a 6-foot beam = roughly 6 adults max
- This is a conservative estimate. Real-world safe load depends on water conditions, weight distribution, and freeboard.
If you are doing this math on a regular basis, get a marine surveyor to issue a written capacity assessment. It is worth the few hundred dollars for the documentation alone.
What this means for engine repowering
When customers come to us at Harris Boat Works for a repower, the capacity plate is the first thing we check. There are three common scenarios:
- Existing motor at or under the rated max. Easy. Replace like for like, or step down if fuel economy matters more than top speed.
- Existing motor exceeds the rated max (often a private-sale boat with a "previous owner upgraded"). This is a problem we have to solve before the repower. Sometimes the plate was correct and the previous owner ignored it. Sometimes the plate was replaced with a higher-rated one (legitimate but rare). We will not install a new motor that pushes the hull over its rated capacity, full stop, because that is an insurance, warranty, and safety problem for the customer.
- No plate, hull is older. We use the Transport Canada formula above as a baseline and have an honest conversation with the owner about realistic HP. Sometimes that means a smaller motor than the customer wanted. Sometimes it means we recommend a different boat.
FAQ
Is it legal to exceed the maximum horsepower on the capacity plate?
On commercial vessels, no. On a personal pleasure craft in Ontario, technically there is no specific federal regulation criminalizing over-powering, but exceeding the rated max can void boat insurance, void motor warranty, and create civil liability if something goes wrong. Practically, no responsible dealer or installer will mount a motor that exceeds the plate rating.
What if my plate is illegible or missing?
For a missing plate, Transport Canada accepts a manufacturer-issued replacement (if the boat builder is still in business) or a marine surveyor's written assessment. For an illegible plate, contact the manufacturer with the HIN and ask for a replacement.
Does the plate cover the trailer too?
No. The plate is for the boat only. Trailer capacity is a separate rating, marked on the trailer itself (typically on the tongue near the coupler). Trailer overload is a common cause of bearing and tire failure on Ontario highways. Worth checking both.
Are pontoons rated differently than V-hulls?
The Compliance Notice format is the same, but pontoon ratings tend to be more generous on person count because of the wider, more stable platform. A 22-foot tritoon may be rated for 12-14 adults where a 22-foot V-hull cruiser is rated for 8-10. Always check the actual plate; do not assume.
My boat was built in 1978 and has no plate. Am I doing something wrong?
No, you are within Transport Canada's rules for boats of that era. The compliance plate requirement applies to boats built after 1981 (in most categories). Safe loading is still your responsibility, but a missing plate on a 1970s hull is not a regulatory issue.
What's the difference between "maximum persons" and "maximum load" on the plate?
Maximum persons is the headcount limit. Maximum load is the total weight limit (people + motor + fuel + gear). You can hit max persons without hitting max load if everyone is small and there is no extra gear. You can hit max load with fewer people if the motor and fuel are heavy. Both numbers are independent limits and either one is binding.
About the author
Jay Harris helps run Harris Boat Works, a third-generation family marina in Gores Landing on Rice Lake, established in 1947. HBW is a Mercury Marine Premier Dealer and Legend Boats dealer serving Rice Lake, the Kawarthas, and Ontario boaters who want straight answers before spending real money. Read Jay's full bio.
