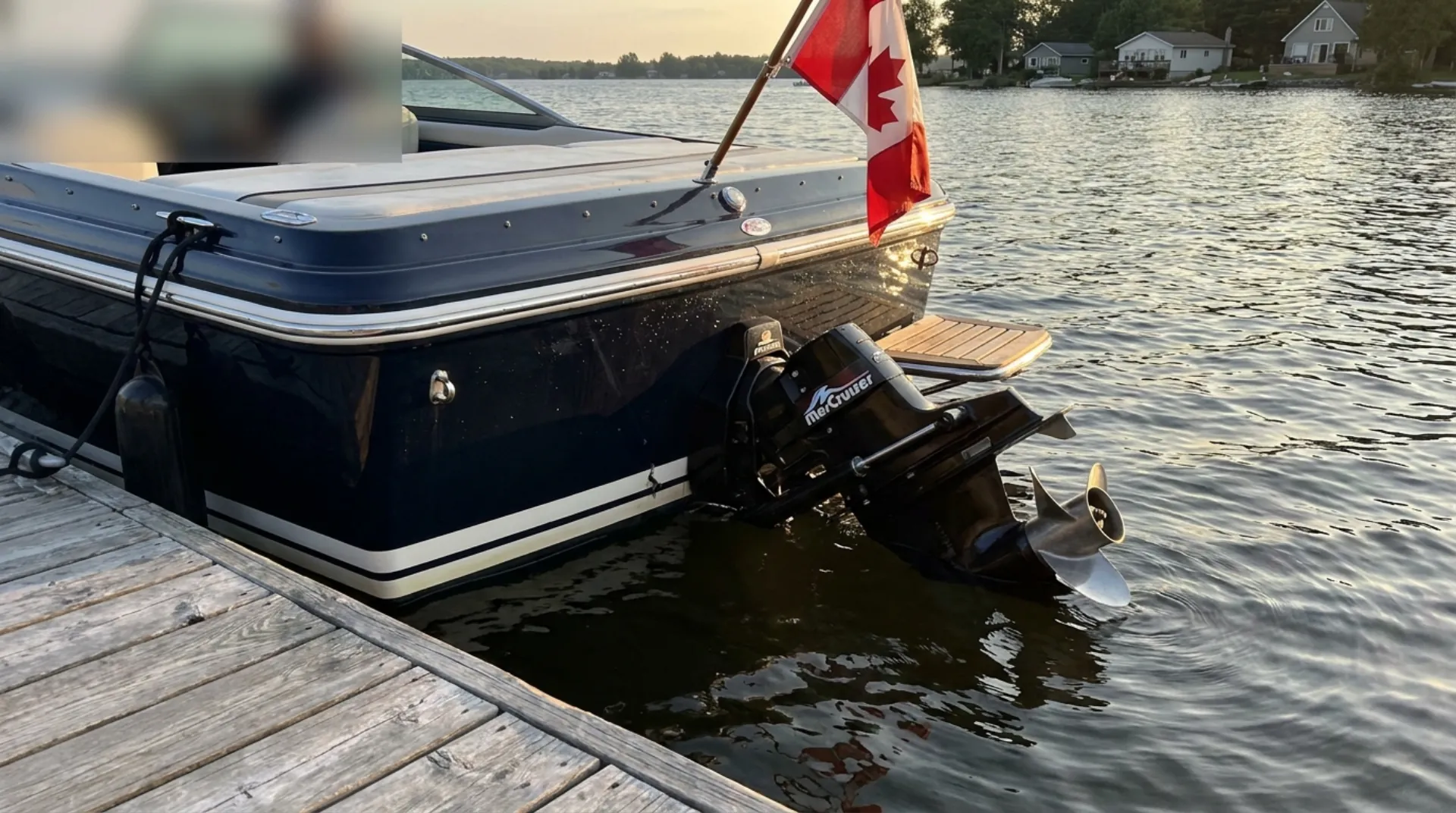

Hero graphic: service-planning topics, not a component-location or installation diagram.
Quick answer: MerCruiser sterndrives are still serviceable and parts are available, but the market has shifted toward outboards for Ontario freshwater use. Repowering a sterndrive boat to outboard is a significant project, and we will tell you honestly which path the numbers favour. Get a real number at mercuryrepower.ca.
Considering converting to outboard power? See Mercury Repower Cost: Ontario 2026 (CAD), the Ontario Mercury Outboard Price Guide, and Mercury Motor Families: FourStroke vs Pro XS vs Verado. The Mercury Controls & Rigging Guide (Ontario) covers what a sterndrive-to-outboard conversion needs at the helm.
Your MerCruiser sterndrive does not need mystery. It needs the right maintenance, especially before an Ontario winter gets involved.
Around here, most expensive I/O problems come from the same few places: missed winterization, old bellows, water intrusion, tired manifolds and risers, or a drive that has been quietly asking for help since Labour Day. The boat usually gave warnings. They were just easy to ignore when the weather was nice.
Harris Boat Works is a family-owned Rice Lake marina established in 1947 and a Mercury Marine Premier Dealer in Gores Landing, Ontario. We service MerCruiser sterndrives, winterize them, store them, and when the repair bill stops making sense, we'll tell you that too. No scare tactics. Boats already cost enough without adding drama.
Sterndrive vs. Outboard, in Two Sentences
A sterndrive (also called an "I/O", inboard/outboard) puts the engine inside the boat under the engine cover and the drive unit outside on the transom. The drive steers and trims like an outboard's lower unit; the engine is a regular gas V8 (or smaller V6/I-4) bolted to the boat.
An outboard is a complete propulsion package, engine, drive, gearcase, all hanging off the transom in one unit.
Each has trade-offs. Sterndrives give you a full-width swim platform, lower noise inside the boat, and the look most '90s and 2000s family boats were designed around. Outboards give you simpler maintenance, easier repower, and better resale.
The Two MerCruiser Drives You'll See in Ontario
Alpha One (Gen 1 and Gen 2), the most common MerCruiser drive in this part of the country. Found behind 4.3L V6, 5.0L V8, and 5.7L V8 engines from roughly 1985 through current production. Up to about 300 HP. Most aluminum-prop family boats.
Bravo (1, 2, and 3), heavier-duty, larger gearcase. Bravo 1 for performance applications. Bravo 2 for larger, heavier boats. Bravo 3 has dual counter-rotating props for better low-speed steering control and acceleration. Behind bigger V8s and V10s.
If you don't know which drive you have, the data plate on the upper drive housing has the model. Take a photo and bring it in, we can also pull it from your boat's serial.

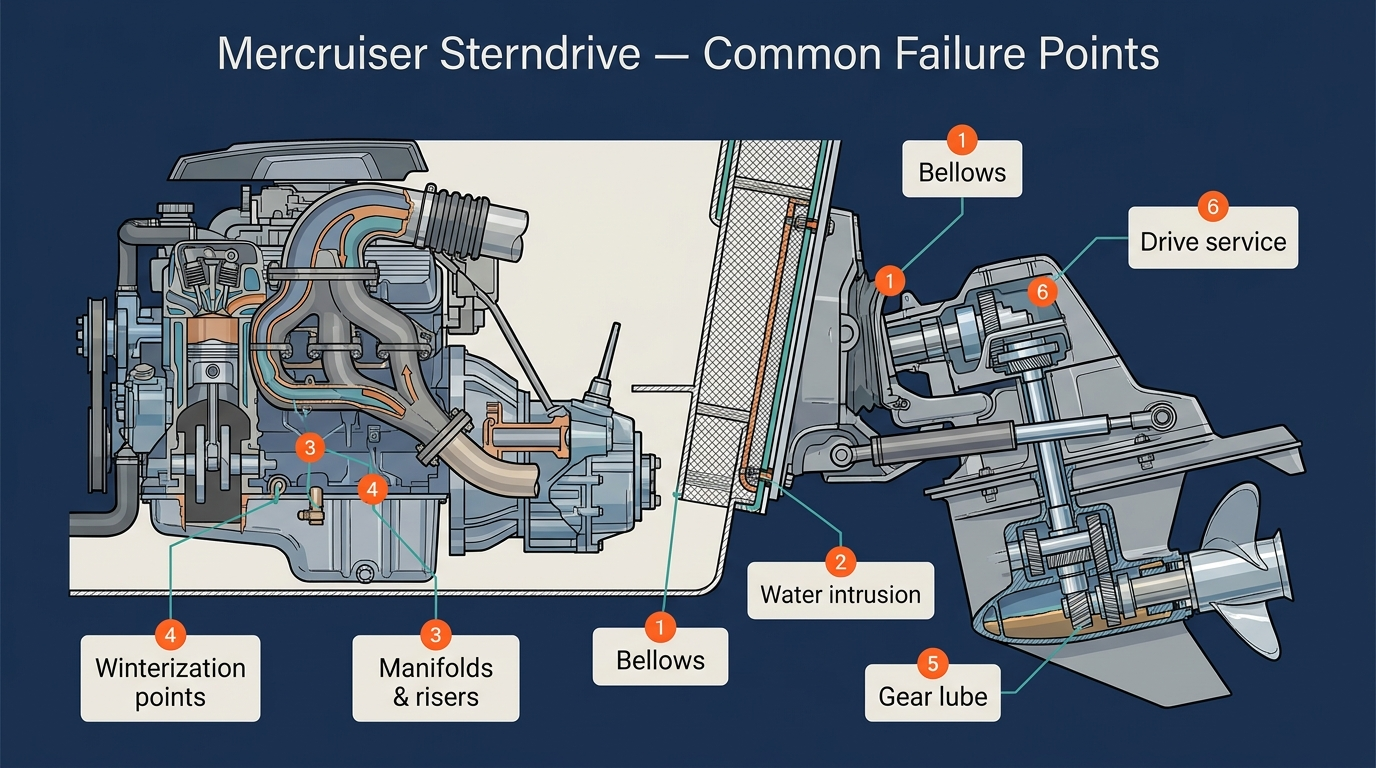

The five failure points on a MerCruiser sterndrive
| Where |
What goes wrong |
| Bellows at the gimbal housing |
The rubber sleeves crack at the folds and let water in through the transom. This is the boat-sinker. |
| Gimbal bearing |
Growls on hard low-speed turns, then takes out the U-joint, the bellows and the engine coupler. |
| Drive seals |
Water or milky gear lube needs leak diagnosis; it does not identify one particular failed seal. |
| Raw water pump and impeller |
Raw water cools the engine or its heat exchanger, so a worn impeller overheats the engine the same way it does on an outboard. |
| Engine block and manifolds |
An incomplete fall drain cracks the block. A sterndrive does not self-drain the way a tilted outboard does. |
Alpha One and Bravo share these service areas, but cooling-system layout also depends on the engine package. Identify the drive and whether the engine has standard or closed cooling before choosing a procedure.
What Actually Kills MerCruiser Boats
In order of how often we see it walk into the shop:
1. Cracked bellows (the boat-sinker)
The bellows are accordion-style rubber sleeves that seal the gimbal housing where the drive meets the transom. There are typically three:
- U-joint bellows, protects the universal joint
- Shift cable bellows, seals the shift mechanism
- Exhaust bellows, vents engine exhaust through the drive
When a bellows cracks, water gets inside the boat through the transom. Not the bilge, into the engine compartment, around the gimbal bearing, eventually into the bilge. A bad U-joint bellows crack can sink a boat at the dock if the bilge pump can't keep up.
Preventive planning window: every 5-7 years. This is not a universal Mercury replacement requirement; follow the exact inspection schedule and replace damaged bellows sooner. Rubber dries out, cracks at the folds, and fails. With the drive removed, inspect the bellows, gimbal bearing and U-joints; replace worn or damaged components according to the applicable manual.
Cost: $1,200 to $2,000 for a complete bellows job depending on drive type. Bravo drives are more involved than Alphas.
2. Gimbal bearing failure
The gimbal bearing is the support bearing that lets the drive pivot for steering inside the gimbal housing. Symptoms:
- Growl or grinding noise when you turn the steering wheel hard at low speed
- Vibration through the deck when the drive's loaded
- Visible play if you grab the prop and rock the drive side-to-side (with engine off)
Replacement is straightforward when the drive is already off the boat for bellows work, that's why we do them together. As a standalone job, $500-$800 in parts plus labour. Catching it early is cheap; ignoring it eats the U-joint, then the bellows, then the engine coupler, then the engine itself.
Prices here are planning figures as of September 7, 2026. For live Mercury motor pricing, see the Mercury pricing reference.
3. Milky gear lube (water in the drive)
Same warning sign as an outboard, same severity. Use the gear lubricant specified for the drive. Water draining out or milky lubricant is a warning of water intrusion, and Mercury directs owners to an authorized dealer for inspection. Appearance alone does not identify the leaking seal or establish which parts need replacement.
Check the gear lube at every oil change. Most owners don't, then drop the lower at the spring service and find $1,800 of damage.
4. Raw water pump and impeller
Many MerCruiser sterndrives are raw-water cooled, like outboards: lake water in, through the engine, back out. Others are closed-cooled, with a coolant loop and heat exchanger that raw water still cools, so check which you have. Alpha drives have an in-drive water pump; Bravo packages use an engine-mounted seawater pump. Some closed-cooled Alpha packages also have an engine-mounted seawater pump with a separate pickup, while retaining the drive pump for drive cooling. Check the exact cooling-system layout, rather than assuming pump location from age. Cheaper to replace, harder to ignore, same overheat consequences as an outboard.
Follow the exact engine and drive maintenance schedule. For example, the May 2017 4.5/6.2 MPI manual schedules seawater-pump inspection and replacement of worn components at three years or 300 hours, whichever comes first. An overheating engine needs prompt diagnosis; do not wait for the scheduled interval.
5. Engine block freeze damage
This is the catastrophic one. If trapped raw water freezes in the engine or exhaust system, it can crack the block or manifolds. Drain points and procedures differ between manual, single-point and air-actuated drain systems; follow the exact engine and cooling-system manual. That's a $5,000 to $10,000+ engine.
A sterndrive needs a more thorough winterization than an outboard. Outboards self-drain when tilted down; a MerCruiser's raw-water circuit needs the model-specific draining and antifreeze procedure. On closed-cooled engines, do not confuse that circuit with the separate engine-coolant loop. One incomplete winterization can mean a cracked block. We see it every spring.
The Maintenance Schedule You Should Actually Run
Use this as a planning checklist, not one factory schedule for every MerCruiser. Match the engine, drive, cooling system and serial number to Mercury's manual. The 5–7-year bellows planning window below is preventive advice, not a universal Mercury replacement interval; damaged components need attention sooner.
Every spring (commissioning)
- Reinstall any drain plugs you pulled in fall
- Inspect all bellows, flex them, look for cracks at the folds, check for dampness inside
- Check drive-lube level and condition using the exact drive's procedure; packages with a gear-lube monitor use the engine-compartment bottle
- Review the service history and complete any dealer inspections due under the exact model's schedule before launching
- Engine oil and filter
- Fuel-water separator filter
- Inspect belts, hoses, clamps
- Verify raw water flow at first start
Every 50-100 hours or annually
- Engine oil and filter (don't go past one season either way)
- Gear lube change (check for milky/metal flakes)
- Anodes, replace any below 50% remaining
Model-specific pump, ignition and cooling service
The May 2017 4.5/6.2 MPI manual is one example, not a replacement for your engine's manual:
- Three years or 300 hours: inspect spark plugs and wires, replacing as necessary. If satisfactory, repeat that inspection annually or every 100 hours
- Three years or 300 hours: inspect the seawater pump and replace worn components; check engine alignment, inspect bellows and clamps, and inspect the gimbal bearing for roughness. These are dealer items; rocking the drive by hand is not a substitute
- Five years or 500 hours: replace extended-life antifreeze; the same manual specifies every two years without extended-life antifreeze
Investigate overheating or cooling-system faults promptly, including thermostat condition. Do not wait for a calendar interval when symptoms appear.
Bellows planning: the 5-7-year window
Use this as a prompt to discuss preventive work and review inspection findings. It is not a deadline to wait for, or a factory instruction to replace every bellows, bearing, U-joint and seal by age. Replace worn or damaged components as the applicable inspection and service procedure requires.
Every fall (winterization, the non-negotiable one)
- Follow the exact engine's fuel-system and corrosion-protection procedure. MPI storage uses Mercury's specified special fuel mix; carbureted/TKS procedures differ. A generic instruction to fog cylinders is not a substitute
- With the engine off, drain the raw-water circuit using the correct drain-system procedure and verify drainage. Apply the specified marine propylene-glycol antifreeze procedure; retain the correct antifreeze protection in the separate closed-cooling loop, if fitted
- Store and maintain the battery according to its manufacturer's instructions
- Drain and refill the drive with the specified fresh gear lubricant; have water or milky lube investigated before storage
- Store the installed sterndrive fully down
- Cover or shrinkwrap with proper ventilation
This is a planning list, not a complete DIY sequence. Mercury recommends dealer winterization. Any procedure requiring the engine to run also requires the specified cooling-water supply; never run it dry.
A skipped fall can easily become a $5,000+ problem. A proper winterization at HBW typically runs $400-$700, depending on engine size and configuration.
When Do You Repower Instead?
A MerCruiser sterndrive engine doesn't last forever. Most we see hit the wall at 15-25 years and 1,500-2,500 hours, depending on care. The decision points:
Consider repowering if:
- The engine has lost compression on one or more cylinders
- You've cracked a manifold (common after a missed winterization or salt environment)
- The drive needs major work AND the engine has 1,500+ hours
- Estimated repair exceeds 50% of the boat's value
Two ways forward:
1. Replace the engine or drive
A remanufactured MerCruiser engine on your existing drive, or a new engine and drive package, keeps the boat as it was designed. HBW doesn't sell replacement sterndrive engines or drives. We service and repair MerCruiser, so we can tell you what's wrong and whether the rest of the boat justifies the spend before you price a replacement elsewhere.
2. Sterndrive-to-outboard conversion
$20,000-$35,000+ depending on hull and HP. Cuts out the drive and transom assembly, installs a fabricated transom bracket and a modern Mercury outboard. Why people do it:
- Simpler maintenance, no bellows, no gimbal bearing, no manifolds
- Better fuel economy on modern 4-stroke outboards
- Stronger resale, outboard boats sell faster in Ontario
- 3-year factory warranty on a new Mercury outboard (current promotions can extend total coverage; see current offers)
- More cockpit space, engine goes from inside to outside
The trade-offs: higher upfront cost than a remanufactured drop-in, swim platform gets reduced (the outboard takes up part of it), and the boat looks different. For some hulls, especially classic '80s and '90s designs, that last point matters; for others it's a clean improvement.
We're not a "convert everything to outboards" shop and we're not a "stick with what you've got" shop. The math depends on the boat.
A Quick Inboard vs. Outboard vs. Sterndrive Reality Check
If you're shopping for another boat, not just servicing your current one, the propulsion question is worth asking honestly.
|
Outboard |
Sterndrive (I/O) |
Inboard |
| Engine location |
Outside hull |
Inside, at transom |
Inside, mid-hull |
| Winterization |
Easiest (self-draining) |
Moderate, manual drain |
Hardest |
| Shallow water |
Excellent |
Excellent |
Limited (fixed shaft) |
| Swim platform |
Engine in the way |
Full width |
Full width |
| Maintenance access |
Easy (tilt up) |
Moderate (engine cover) |
Moderate |
| Repower cost |
Lower (one unit) |
Higher (engine + drive) |
Highest |
| Ontario resale |
Strongest |
Declining |
Niche (ski/wake) |
| Best for |
Fishing, versatility, repower-friendliness |
Family cruising, watersports |
Tow sports, wake boats |
The honest take for most Ontario boaters: outboards have won the volume war. Sterndrive market share is shrinking, and the I/O fleet still on Ontario lakes is quietly aging out. Check current parts availability for your exact MerCruiser model and serial; future supply is not guaranteed. That said, we have customers running 25-year-old MerCruisers that work perfectly because they were maintained. The propulsion type matters less than the maintenance.
If you have a great I/O hull and you love the boat, keep it. We'll keep it running. If the cost-to-keep math is going sideways, repower or convert.
Service Your MerCruiser at HBW
We've been a Mercury dealer in Ontario since 1965. That includes MerCruiser. Same factory training, same parts access, same diagnostics. The difference between us and an outboard-only shop is we know what to do when the answer isn't "remove the cowl and look."
For engine repairs, we only service Mercury and MerCruiser.
What we handle:
- Annual service and winterization
- Bellows and gimbal bearing inspection and repairs
- Raw water pump, thermostat, manifolds, risers
- Engine diagnostics and repairs (gas MerCruiser, all sizes)
- Drive rebuilds (Alpha and Bravo)
- Outboard conversions on suitable hulls (we don't sell replacement sterndrive engines or drives)
- Storage (outdoor storage with professional shrink wrap, outdoor uncovered storage, or shrink-wrap-only service; sterndrives included)
Book at hbwservice.ca.
Sources and review notes
Technical examples were checked against Mercury's 4.5/6.2 MPI manual, 90-8M0128973 (May 2017), 3.0 MPI ECT/3.0 TKS manual, 90-8M0086871 (November 2014), and Mercury's MerCruiser winterization guidance. Procedures and intervals depend on the exact engine, drive and cooling system; use the manual matching your serial number.
