Quick answer
Most Ontario aluminum fishing boats need a 20-inch (long) shaft. Most pontoons over 22 feet need a 25-inch (extra long) shaft. Small tiller boats with low transoms typically take a 15-inch (short) shaft. The only correct way to confirm is to measure transom height, the distance from the top of the transom down to where the hull contacts the water. Mercury's shaft code on the motor (S, L, XL, XXL) tells you the rest. The full decoder and a measurement guide are below.
Ready to price it? Build your quote, shaft length is a step.
Why shaft length matters more than most people think

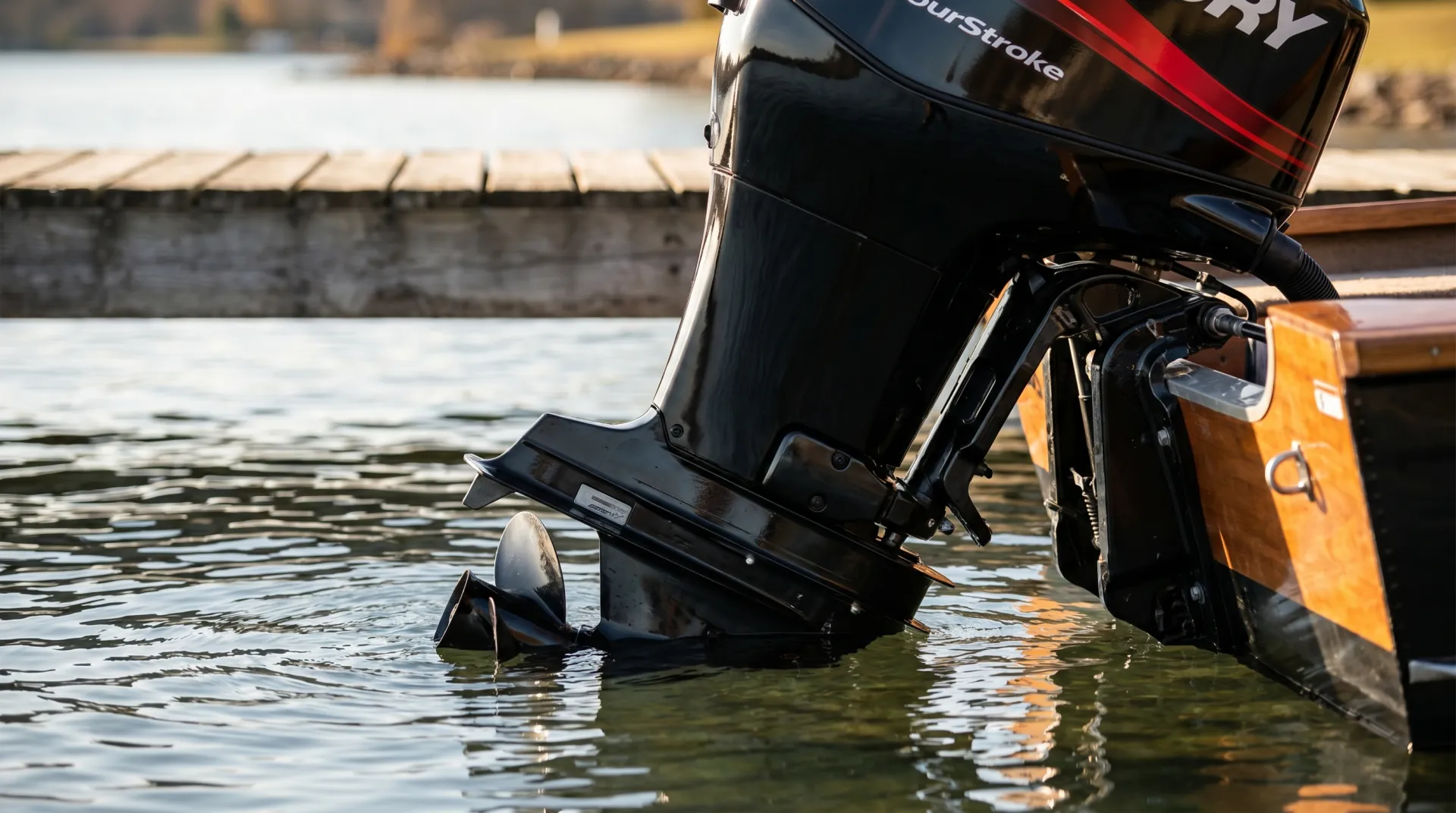

Shaft length determines where the propeller sits in the water column relative to your hull. The rule is straightforward: the cavitation plate (the flat plate just above the prop) should ride roughly level with the bottom of your hull at the prop location when the boat is on plane.
Too short, and the prop rides too close to the surface, pulling air and cavitating under load. Too long, and the lower unit drags unnecessarily through the water, costing you speed and fuel economy.
Neither is a minor problem. We see wrong-shaft installs regularly, sometimes from dealers who did not measure, sometimes from online purchases made without measuring. The fix is either returning the motor before it is rigged, or living with a motor that never performs the way it should.
Get the measurement right before you order. It takes five minutes.
Mercury shaft length options
Short shaft, 15 inch (Code: S)
- Best for: Small aluminum tinnies with low transoms, typically 12 to 14 ft
- Common Mercury models: Portable motors in the 2.5 to 9.9 HP range
- Transom height to match: ~15 inches
- Less common than it used to be. Most modern aluminum boats are built taller than this.
Long shaft, 20 inch (Code: L)
- Best for: Most aluminum console fishing boats, open runabouts, smaller pontoons, typically 14 to 19 ft
- Choose the exact model listed with a 20-inch shaft in its specification. Read the complete model suffix and confirm it against the model’s specification sheet; an XL designation belongs to the 25-inch category.
- Transom height to match: ~20 inches
- This is the most common shaft length on Ontario freshwater boats. If you own a standard aluminum fishing boat on Rice Lake, this is probably what you need, but measure first.
Extra long shaft, 25 inch (Code: XL)
- Best for: Larger pontoons, deep-V hulls, sailboat auxiliaries, some center-console applications, typically 18 ft+ or boats with deep transoms
- Common Mercury models: 90 EXLPT, 115 EXLPT, 150 EXLPT, plus extra-long options on many 9.9 ProKicker, 15, 25, 200, 250, 300 HP, and Verado lines. Confirm the exact current SKU.
- Transom height to match: ~25 inches
- Pontoon boats vary, some 22-ft pontoons run 20-inch, some run 25-inch depending on model year and transom design. Measure; do not assume.
Ultra long shaft, 30 inch (Code: XXL or U)
- Best for: Sailboat auxiliaries and deep-transom commercial applications
- Less common in Ontario freshwater. Special order on most models.
Confirm the measurement before choosing a motor. Use the installation instructions for the exact engine and the boat manufacturer's guidance. Have a qualified installer confirm the transom measurement, shaft configuration and mounting position. A generic illustration is not an installation specification.

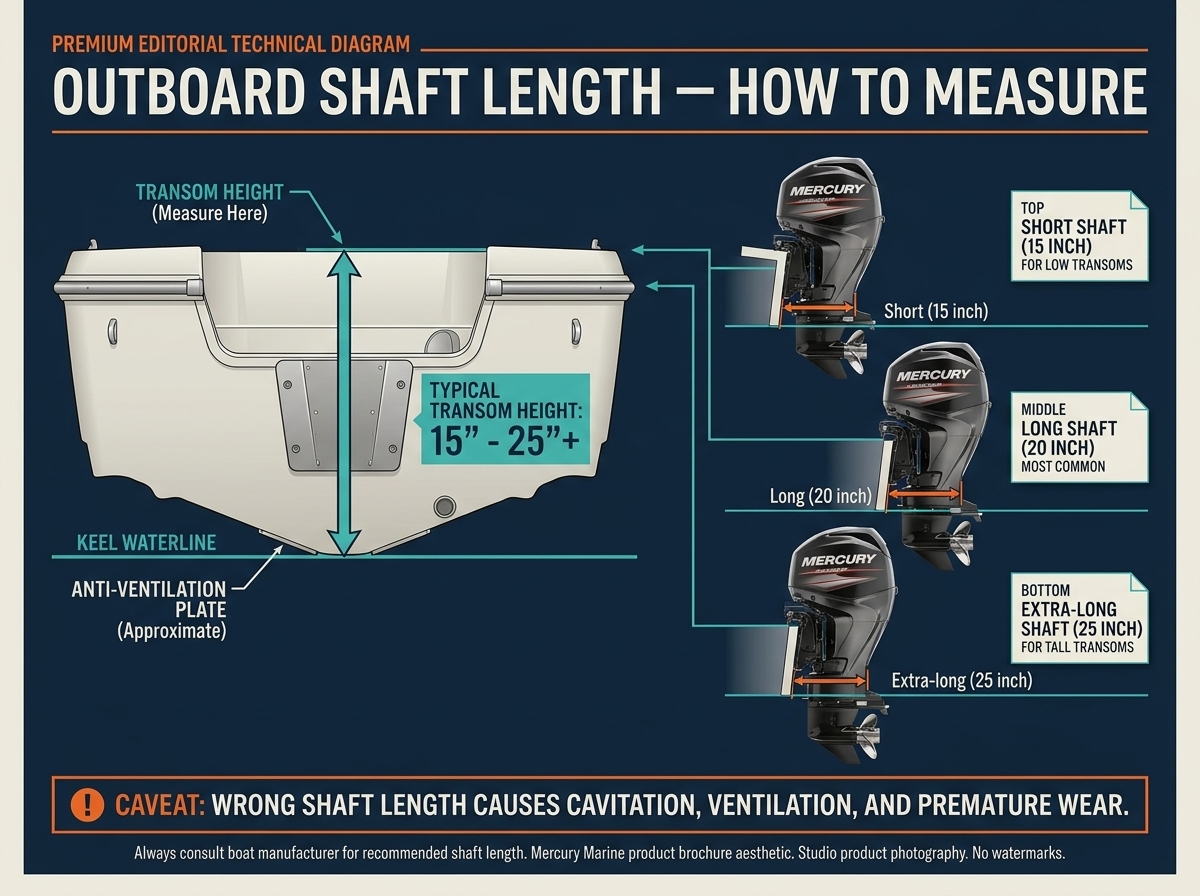

How to measure your transom height
You need a tape measure and five minutes:
- Find the lowest point of your hull at the transom, the point where the water contacts the hull when the boat is running on plane. On most aluminum boats, this is the bottom edge of the transom cutout.
- Measure straight up from that point to the top of the transom, where the motor mounting bracket will sit.
- That measurement is your transom height. Match it to the chart below.
| Transom Height |
Shaft Length Needed |
Mercury Code |
| 15 to 16 inches |
Short |
S (15") |
| 19 to 21 inches |
Long |
L (20") |
| 24 to 26 inches |
Extra Long |
XL (25") |
| 29 to 31 inches |
Ultra Long |
XXL (30") |
Between chart sizes, do not apply a universal round-down rule. Shaft length depends on the exact hull, transom, setback, motor, and mounting height. Measure, then confirm the boat- and engine-specific mounting guidance before you order.
Five things that change the answer
- Hull design. Deep-V hulls with steep transom angles sometimes need a 25-inch shaft even when the transom height measures 22 inches.
- Motor mounting position. Where the motor mounts on the transom affects the effective working shaft length.
- Setback brackets. Some boats extend the motor 5 to 10 inches behind the transom with a setback bracket. Setback changes the effective shaft-length requirement.
- Hull condition and waterline. A heavily loaded or unevenly trimmed boat rides differently than the same hull at factory spec.
- Intended use. High-speed applications sometimes run a slightly shorter shaft than recommended for reduced drag. Not advised for typical recreational use.
How to tell if your shaft length is wrong
Shaft too short
- Prop cavitates (ventilates) under load, RPMs spike, the boat will not accelerate cleanly
- Choppy ride at speed, the motor lifts in waves, the prop breaks the surface
- Overheating, the cooling water intake can rise above the waterline
- Cavitation plate is visibly above the water at cruising speed
Shaft too long
- Reduced top speed, the lower unit is dragging more water than it should
- Worse fuel economy, same cause
- Motor sounds "loaded" at cruise, working harder than the throttle position should require
- Cavitation plate is well below the water surface at speed
If you are seeing any of these symptoms, shaft length is a strong candidate. HBW's acceptance checks follow the specific motor, hull, rigging, work order, and safe seasonal conditions.
Decoding Mercury shaft length codes
| Code |
Meaning |
| S |
Short shaft (15 inch) |
| L |
Long shaft (20 inch) |
| XL or EXL |
Extra Long shaft (25 inch) |
| XXL or U |
Ultra Long shaft (30 inch) |
| ELPT |
Electric start, Long shaft, Power Tilt |
| EXLPT |
Electric start, eXtra Long shaft, Power Tilt |
| ELH |
Electric start, Long shaft, tiller |
| ELHPT |
Electric start, Long shaft, tiller, Power Tilt |
Examples:
- Mercury 90 EXLPT FourStroke = 25-inch shaft, electric start, power tilt
- Mercury 9.9 MH = Short shaft (15 inch), manual start, tiller
- Mercury 60 ELHPT = 20-inch shaft, electric start, tiller, power tilt
Common shaft length mistakes we see every season
- Ordering online without measuring. Customer assumes "long" based on looking at the boat, orders a 20-inch shaft, hull actually needs a 25-inch.
- Trusting the old motor shaft length. The old motor may have been wrong, or it may have been compensated with a different mounting height. Measure the boat, not the old motor.
- Splitting the difference. "My transom measures 22 inches, I will just get the 20-inch and make it work." You cannot make it work.
- Forgetting setback effects. Setback brackets change the effective shaft requirement.
- Short-shaft sailboat installs. Sailboat transoms are typically deep, 20-inch is the minimum, and 25-inch is often correct.
How HBW gets shaft length right
Three things we do on every repower that prevent wrong-shaft mistakes:
We measure the transom during the walk-around. Every repower starts with a tape measure, not a guess. We see the hull in person before we order.
We know the hull patterns. Three generations of rigging experience means we know that a typical 16 to 18 ft Lund console takes a 20-inch, a Princecraft pontoon runs 20 or 25 depending on model year, and a Crestliner Tournament series may need 25.
We lake-test borderline cases. If the transom height is between sizes, we install and run the boat before signing off. Wrong shaft gets caught and corrected before it leaves our lot.
Ready to spec the right shaft?
Build a quote at mercuryrepower.ca. The configurator includes shaft length selection by Mercury model.
Need a quick shaft-length check? Try our Shaft Length Picker. Punch in your transom height and we will tell you if you want a 15", 20", 25", or 30" shaft.
Sizing a 9.9 to your transom? Our Mercury 9.9 tiller, kicker, and ProKicker guide lists shaft length for every 9.9 variant.
What we see at HBW
The single most common rigging mistake we see on used-boat purchases: wrong shaft length on a repower. Owner pulled a 15-inch short-shaft, ordered a 20-inch long-shaft expecting "more boat coverage", and the prop is now too deep to plane efficiently.
Always measure the transom from the top edge to the cavitation plate centerline before ordering. 15" for most tinnies, 20" for bowriders and pontoons, 25" for offshore-style hulls.
