Quick Answer
Picking a Mercury prop comes down to four things: your gearcase, your hull, how you load the boat, and what you want it to do. For most aluminum fishing boats on Rice Lake running a standard Mercury gearcase, a 3-blade aluminum prop is where the conversation starts. Pitch depends on horsepower and how the boat sits. For pontoons with Command Thrust, compare compatible propellers for the hull and usual load; CT does not require four blades in every application. The confirmation step is the same every time: run the motor at wide-open throttle and check the RPM against the spec for your engine family.
How Prop Pitch Works
Pitch is the theoretical forward distance, in inches, that the prop would move through the water in one rotation if there were no slip. A 19-pitch prop would travel 19 inches per revolution in perfect conditions. Real-world slip varies by hull, load, and operating speed.
The practical rule used at every dealer:
Each inch of pitch change is worth roughly 150 to 200 RPM at wide-open throttle.
That rule is the centerpiece of prop tuning. If a boat is over-revving at WOT, the prop is under-pitched. Step up. If the boat is under-revving at WOT, the prop is over-pitched. Step down. The goal is to land in the middle of the manufacturer's recommended WOT RPM band with the boat under normal load.
Most repower and prop-change conversations at HBW eventually come back to this rule.
Diameter vs. Pitch vs. Blade Count

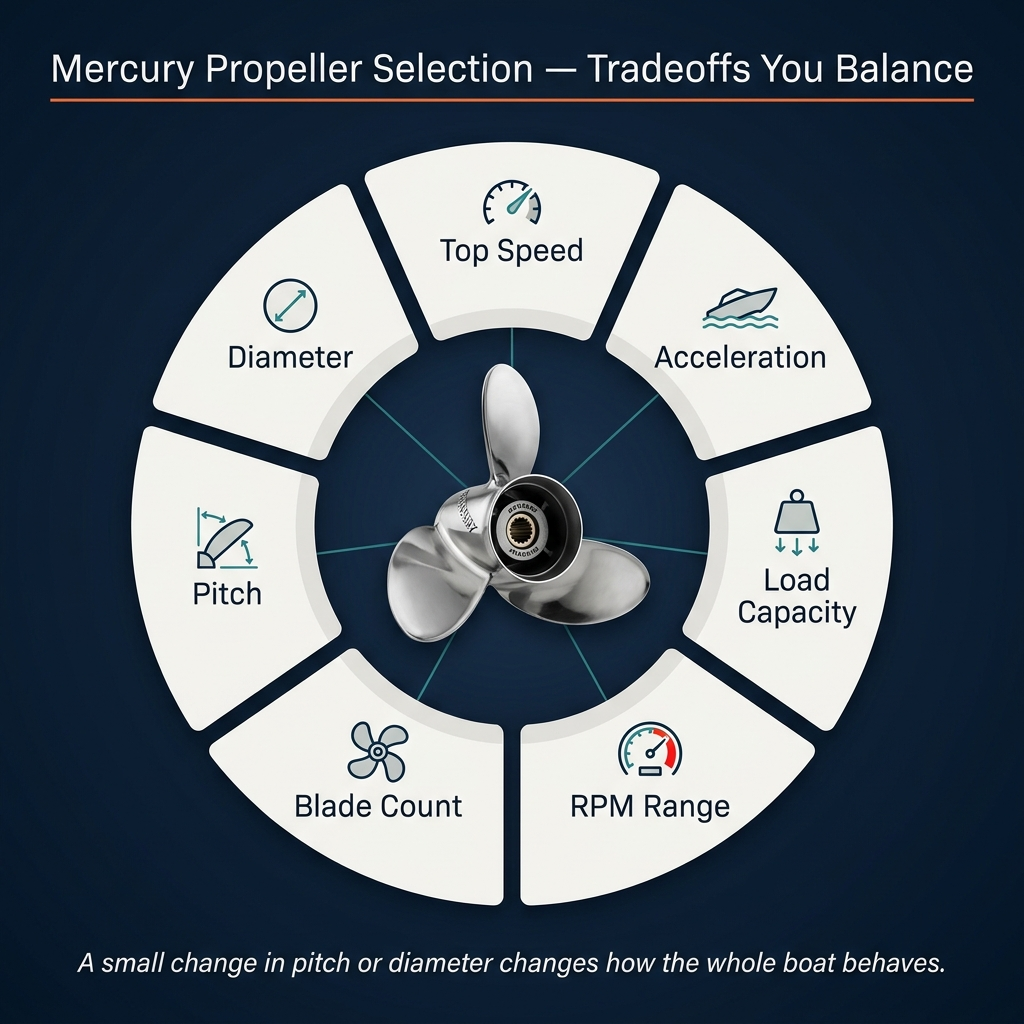

Three things you tune when you select a Mercury prop:
Diameter is the prop's total width measured across the tips. Larger diameter generally moves more water and gives more thrust at lower RPMs. Smaller diameter is for higher-RPM, higher-efficiency applications. Diameter is also partially determined by the gearcase (Command Thrust uses a larger gearcase that fits a larger-diameter prop).
Pitch is the forward distance per revolution, as above. This is the dial you turn to match the motor's WOT RPM to the spec.
Blade count changes hole-shot behaviour and how the boat handles in chop. More blades generally mean better hole-shot, better grip in turns, and a more loaded feel at cruise. Fewer blades generally mean higher top-end and less drag at speed.
Material is the fourth variable. Aluminum or stainless steel. Covered below.
Aluminum vs. Stainless Steel
Aluminum and stainless are the two main material categories. They are not equivalent.
Aluminum is the default for most fishing boats, pontoons under 150 HP, and any application where strike damage from rocks, logs, or deadheads is a real possibility. Aluminum props are less expensive, they flex slightly before catastrophic failure, and they are usually field-repairable. The downside is they wear faster, they lose efficiency over time, and they cannot deliver the top-end of a comparable stainless prop.
Stainless steel is the default for higher-HP applications, performance hulls, and any setup where the small efficiency gain matters. Stainless is stiffer, holds its shape under load, and transfers more of the motor's power to forward thrust. The downside is cost, weight, and the fact that a hard strike can damage the hub or the gearcase rather than the prop. Stainless is usually professional repair rather than field-repair.
Both have their place. For Rice Lake and the Kawarthas, aluminum covers most recreational use. For higher-HP performance hulls and pontoons over 200 HP, stainless usually makes economic sense even at the higher upfront cost.
3-Blade vs. 4-Blade
The blade-count decision usually comes down to what the boat is for.
3-blade props are the default for most aluminum fishing boats and general-purpose applications. They give the best top-end at a given pitch, the least drag at cruise, and the simplest tuning math. If the boat needs to go fast in a straight line and you are not pulling a tube or a skier, 3-blade is usually the right choice.
4-blade props improve hole-shot, low-speed control, and turning grip. They are the default for pontoons, watersports tow boats, and any boat that has trouble getting up on plane. The trade-off is some top-end speed, usually 1 to 3 MPH at the high end depending on the setup. For pontoons with Command Thrust, compare compatible three- and four-blade options against the handling and performance you need.
5-blade props exist for very specific high-load applications. Most HBW customers will never need one.
Prop Selection by Hull Type
The big-picture matching table. Specific pitch depends on horsepower and how the boat sits in the water. Each named family below keeps its own blade and material fields. Verify part number, hub, gearcase, and exact engine before treating any row as an order.
| Hull type |
Gearcase |
Families to compare |
Blade / material facts |
| 14 to 18 ft aluminum tiller fishing boat |
Standard |
Black Max; Spitfire only if you want four blades |
Black Max: 3-blade aluminum. Spitfire: 4-blade aluminum, not a 3-blade. |
| 16 to 20 ft aluminum console fishing boat |
Standard |
Black Max, Enertia |
Black Max: 3-blade aluminum. Enertia: 3-blade stainless. |
| 18 to 22 ft deep-V fibreglass |
Standard |
Enertia, Fury 4 |
Enertia: 3-blade stainless. Fury 4: 4-blade stainless, not a 3-blade. |
| 20 to 24 ft pontoon (90 to 115 HP) |
Command Thrust |
Spitfire X7 |
Spitfire X7: 4-blade stainless. Confirm hub and gearcase. |
| 22 to 26 ft pontoon (115 to 200 HP) |
Exact engine/gearcase; CT only where offered |
Vensura after fitment check |
Vensura: 4-blade stainless; confirm current hub, gearcase and engine compatibility before ordering. Enertia ECO is 3-blade stainless. |
| 24+ ft tritoon / luxury pontoon (200+ HP) |
Exact engine-specific gearcase |
Fury 4 after fitment check |
Fury 4: 4-blade stainless. Confirm the exact hub, gearcase, and engine compatibility. |
| Bass boat / high-performance hull (Pro XS) |
Sport Master / Torque Master |
Fury 4, Bravo I FS, Pro Max |
Fury 4: 4-blade stainless. Confirm the performance family's hub and gearcase. |
| Watersports tow / wake / ski boat |
Standard or Command Thrust |
Fury 4, Enertia |
Fury 4: 4-blade stainless. Enertia / Enertia ECO: 3-blade stainless. |
| Heavy work boat / charter / commercial |
Standard or Command Thrust |
Enertia, Vensura |
Confirm the exact family, hub, and gearcase rather than inferring from boat length. |
This table is a starting point, not a final answer. Final prop selection depends on the WOT RPM test described below. A boat that is loaded heavier (full fuel, passengers, gear) than the dealer demo run will need a different pitch than the manufacturer-default prop ships with.
Match the propeller to the complete setup
- Engine and gearcase: confirm the exact model, shaft and compatible hub or mounting system.
- Boat and load: account for hull design, passengers, fuel, equipment and normal use.
- Performance goal: discuss planing, handling, cruising and towing needs with the installer.
- Verification: compare the proposed propeller with the manufacturer's guidance and appropriate on-water test results.
A boat-length table cannot establish propeller fit. Command Thrust does not by itself select a blade count, and a pitch change does not guarantee a fixed RPM change. Use the model-specific specifications and confirm compatibility with HBW.
How to Confirm Prop Selection: The WOT RPM Test
Every Mercury propeller decision should be confirmed with a wide-open-throttle RPM test under normal operating load. The test is simple.
- Run the boat at full operating load. People aboard, gear loaded, fuel tank where it usually sits. Not light-load.
- Trim the motor to normal cruise trim. Not bow-up, not bow-down. Settled.
- Hold wide-open throttle for long enough to settle the RPM. Watch the tachometer.
- Compare the WOT RPM against Mercury's published WOT spec for your motor family. Specs are in your operator manual or your dealer can look them up.
- Match the result to the rule:
- WOT RPM below the manufacturer's spec range: Over-pitched. Step down 1 inch of pitch.
- WOT RPM in the middle of the spec range: Correct prop.
- WOT RPM above the spec range: Under-pitched. Step up 1 inch of pitch.
The pitch change rule of thumb: 1 inch of pitch = 150 to 200 RPM. A boat hitting 6,200 RPM at WOT against a 5,800 to 6,400 RPM spec is fine. A boat hitting 5,400 RPM against the same spec needs a smaller pitch.
If you bought your motor at HBW or another Mercury dealer, the dealer demo run should have included the WOT check. If you bought the boat used or the motor was re-rigged, get the WOT test done in your first season of running it.
Common Mercury Prop Families at HBW
Quick reference for the prop families you will see on Ontario Mercury motors:
Black Max is Mercury's basic 3-blade aluminum prop. Standard equipment on many lower-HP fishing motors. Good general-purpose prop. Field-repairable.
Spitfire is Mercury's 4-blade aluminum family. Spitfire X7 is a separate 4-blade stainless family, not an aluminum option. Confirm hub and gearcase before treating X7 as the automatic Command Thrust prop.
Enertia is Mercury's 3-blade stainless prop. Performance fishing, cruiser, deep-V hulls. Enertia ECO is also 3-blade stainless, not a 4-blade variant.
Fury 4 is Mercury's 4-blade stainless performance prop (X7 stainless alloy on the current product page). Bass boats, performance pontoons, and watersports applications only after confirming hub, gearcase, and engine.
Vensura is identified in Mercury catalog material as a 4-blade stainless prop. Confirm the current hub, gearcase, and engine compatibility with your dealer before ordering.
Bravo One FS and Pro Max are higher-tier performance props for Pro XS and racing applications. Less common in the recreational fishing and pontoon segments most HBW customers run.
There are more Mercury prop families than this. These are the ones that cover most Ontario freshwater applications.
Prop Mistakes We See Every Season
Things we see customers do that we wish they would not:
Buying a prop based on top-speed alone. If a boat is rated for 50 MPH top-end but the owner never runs above 30 MPH because the lake is too small, the right prop is not the prop that maximizes 50 MPH. The right prop is the one that gives the best fuel economy and easiest cruise at 30 MPH.
Skipping the WOT test after a new prop. A new prop is not confirmed until it has been WOT-tested under normal load. Manufacturer recommendations and dealer recommendations are starting points. The water is the test.
Running over-pitched to "get a quieter motor at cruise." Under-loading the engine at cruise sounds nice but accelerates wear and hurts fuel economy. The motor wants to land in its operating-RPM band.
Replacing a damaged prop with the same exact part without diagnosing what bent it. If you bent a prop on a rock, the next question is whether the gearcase is also damaged. A new prop on a bent shaft is a short-lived solution.
Trying to fix a prop problem when the actual issue is hull or load. Boats that ride heavy, take on water, or have a layout that pushes weight backward will under-perform with any prop until the underlying issue is addressed.
Quote configurator at mercuryrepower.ca includes a prop selection step. Live CAD pricing, hull matching, and prop family recommendation in under 5 minutes.
If you have a current Mercury setup and the prop is wrong (over-pitched, under-pitched, wrong family for the hull), bring it in for a service visit. We will run the WOT test and recommend the right replacement.
